Active Sensor & Display

Leybold Linear Pressure Sensor DI/DU

Piezo or capacitive pressure sensor based on ceramics technology Available as absolute or relative pressure sensor

  • Leybold DI/DU 2000 Sensor

    -Connection flange: DN 16 ISO-KF

    -Pressure range: 1 - 2000 mbar

  • Leybold DI/DU 200 Sensor

    -Connection flange: DN 16 ISO-KF

    -Pressure range: 0,1 - 200 mbar

  • Leybold DIVAC DI/DU 2001 Sensor

    -Connection flange: DN 16 ISO-KF

    -Pressure range: - 1000 to + 1000 mbar (relative pressure)

  • Leybold DI/DU 201 Sensor

    -Connection flange: DN 16 ISO-KF

    -Pressure range: 0,1 - 200 mbar

Leybold CERAVAC Transmitters

CERAVAC transmitters CTR are active sensors with a diaphragm made of Inconel®, which offers an excellent accuracy (up to 0.12% rdg.) with highest reproducibility. Due to the resistant material composition the CERAVAC is also suited in very aggressive and corrosive applications.

  • Leybold CERAVAC CTR 100 N Sensor

    -Sensor temerature: temperature compensated

    Measurement Range:-

    0 1 Torr / 1 x 10-5 to 0 1 Torr

    1 Torr / 1 x 10-4 to 1 Torr

    10 Torr / 1 x 10-3 to 10 Torr

    20 Torr / 2 x 10-3 to 20 Torr

    100 Torr / 0 01 to 100 Torr

    1000 Torr / 0 1 to 1000 Torr

  • Leybold CERAVAC CTR 101 N Sensor

    -Sensor temerature: 45 °C

Leybold THERMOVAC Transmitter

THERMOVAC transmitters TTR are active sensors (pressure to voltage converters) using thermal conductivity after the very robust MEMS Pirani technology together with a PIEZO diaphragm (TTR101). Depending on the field of application, a selection between different sensors in the pressure measure range between 10-5 and 1500 mbar mbar is possible. The THERMOVAC transmitter are benchmark concerning measurement uncertainty and resilient to vibration and shock venting.

  • Leybold THERMOVAC TTR 91 N

    - Connecting type: FCC68

    - Pressure range: 5 x 10-5 mbar - 1000 mbar

    - Connecting flange: DN 16 ISO-KF

  • Leybold THERMOVAC TTR 101 N with display

    - Connection type: FCC68

    - Pressure range: 5 x 10-5 mbar - 1500 mbar

    - Connecting flange: DN 16 ISO-KF

  • Leybold THERMOVAC 916 N - 2SP with display

    - Connection type: FCC68

    - Pressure range: 5 x 10-5 mbar - 1500 mbar

    - Connecting flange: DN 16 ISO-KF

  • Leybold THERMOVAC TTR 101 N

    - Connection type: FCC68

    - Pressure range: 5 x 10-5 mbar - 1500 mbar

    - Connecting flange: DN 16 ISO-KF

  • Leybold THERMOVAC TTR 911 N

    - Connection type: RS232

    - Pressure range: 5 x 10-5 mbar - 1000 mbar

    - Connecting flange: DN 16 ISO-KF

  • Leybold THERMOVAC TTR 916 N with display

    - Connection type: FCC68

    - Pressure range: 1,2 x 10-4 mbar - 1000 mbar

    - Connecting flange: DN 16 ISO-KF

  • Leybold THERMOVAC TTR 96 N 2SP

    - Connecting type: FCC68

    - Pressure range: 5 x 10-5 mbar - 1000 mbar

    - Connecting flange: DN 16 ISO-KF

  • Leybold THERMOVAC TTR 200 N - 3SP

    - Connection type: RS232

    - Pressure range: 5 x 10-5 mbar - 1500 mbar

    - Connecting flange: DN 16 ISO-KF

Leybold PENNINGVAC Transmitters

PENNINGVAC-Transmitters PTR are active sensors (pressure to voltage converters) based on the principle of the Inverted Magnetron technology. Here the pressure is measured through automatic ignition of the cold cathode by the MEMS PIRANI (PTR90 N). These sensors offer a wide measurement range (10-8mbar) and have a very long life time, due to a low ionization current and compact stainless steel body.

  • Leybold PENNINGVAC PTR 225

    - Connection type: FCC68

    - Pressure range: 1 x 10-8 mbar - 5 x 10-3 mbar

    - Connecting flange: DN 25 ISO-KF

  • Leybold PENNINGVAC PTR 225 N - 3SP

    - Connection type: RS232

    - Pressure range: 1 x 10-8 mbar - 5 x 10-3 mbar

    - Connecting flange: DN 25 ISO-KF

  • Leybold PENNINGVAC PTR 237 N

    - Connection type: FCC68

    - Pressure range: 1 x 10-8 mbar - 5 x 10-3 mbar

    - Connecting flange: DN 40 CF

  • Leybold PENNINGVAC PTR 90 N

    - Connection type: FCC68/ RS232

    - Pressure range: 1 x 10-8 mbar - 1000 mbar

    - Connecting flange: DN25KF/ DN40KF/ DN40CF

  • Leybold PENNINGVAC PTR 90 N with display

    - Connection type: FCC68

    - Pressure range: 1 x 10-8 mbar - 1000 mbar

    - Connecting flange: DN 25KF

Leybold IONIVAC-Combi-Transmitters

IONIVAC-Transmitters ITR are active sensors (pressure to voltage converters) which are based on the Bayard-Alpert principle. A hot cathode emits electrons which impinge on an anode. The gas of which is to be measured, is thus ionized. The resulting positive ion current is detected through the third electrode and this current is used as the signal which is proportional to the pressure. The Hot Cathode Ionization sensors offer a wide measurement range of 10-10 to 10-1 mbar (0.75·10-10 to 0.75·10-1 Torr).

  • Leybold IONIVAC ITR 90

    - Connection type: 15 way Sub-D Male

    - Connecting flange: DN 25 ISO-KF/ DN 40 CF

    - Pressure range: 5 x 10-10 mbar - 1000 mbar

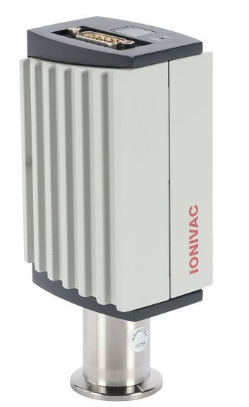

  • Leybold ITR 90 Display

    - Connection type: 15 way Sub-D Male

    - Connecting flange: DN 25 ISO-KF/ DN 40 CF

    - Pressure range: 5 x 10-10 mbar - 1000 mbar

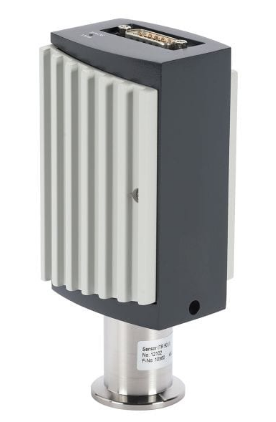

  • Leybold IONIVAC ITR 200 S

    - Connection type: 15 way Sub-D Male

    - Connecting flange: DN 25 ISO-KF/ DN 40 CF

    - Pressure range: 5 x 10-10 mbar - 1000 mbar

Display Units for Active Sensors

  • Leybold GRAPHIX ONE, TWO & THREE

    - Mains connection: 100 - 240 V, 50/60Hz

    - Pressure range: 1 x 10-10 mbar - 2000 mbar

    - No of channel display: 1 to 3

    - Suited sensors: THERMOVAC, CERAVAC, Linear Sensor DU, PENNINGVAC & IONIVAC

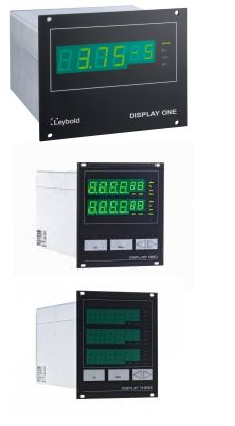

  • Leybold DISPLAY ONE, TWO & THREE

    - Mains connection: 100 - 240 V, 50/60Hz

    - Pressure range: 5 x 10-9 mbar - 2000 mbar

    - No of channel display: 1 to 3

    - Suited sensors: THERMOVAC & PTR 90
